Download xpadneo — Xbox Controller Driver for Linux

Yes, xpadneo is safe. It is an open-source kernel module released under the GPL-3.0 license, with its full source code publicly available on GitHub. The project has earned over 2,600 stars and 132 forks, and it is actively maintained by developers Florian Dollinger and Kai Krakow.

Because xpadneo is a DKMS kernel module, it compiles directly on your machine from source code that you can inspect before building. There are no precompiled binaries, no bundled adware, and no telemetry. The project originated as a student project at fortiss GmbH, a research institute affiliated with the Technical University of Munich. Major Linux distributions include it in their official or community repositories: Arch Linux offers xpadneo-dkms through the AUR, Fedora has it in Copr, and openSUSE distributes it via the Build Service.

• Source code is fully auditable at github.com/atar-axis/xpadneo
• No closed-source components or external dependencies beyond standard Linux packages
• 881 commits with a transparent development history going back to 2018
• Community-vetted across Arch, Ubuntu, Fedora, Manjaro, openSUSE, and Linux Mint

Pro tip: Always clone from the official GitHub repository or install through your distribution’s package manager. Third-party download sites may repackage the driver with unwanted modifications.

For step-by-step installation from the official source, see our Getting Started guide.

The official xpadneo source is hosted on GitHub at github.com/atar-axis/xpadneo. This is the only authorized distribution channel maintained by the original developers.

The latest release is v0.9.8 “LAST XMAS,” published on December 30, 2024. The entire module is around 50 KB when cloned, since it is source code that compiles locally through DKMS. You do not need to download any executable or binary installer. For distribution-specific packages, Arch Linux users can install xpadneo-dkms from the AUR using yay -S xpadneo-dkms. Fedora users can add the Copr repository maintained by tmsp. openSUSE users have access through the openSUSE Build Service.

1. Open a terminal and run git clone https://github.com/atar-axis/xpadneo.git
2. Enter the directory: cd xpadneo
3. Run the installer: sudo ./install.sh
4. Verify the module loaded: lsmod | grep xpadneo

Pro tip: If you want a specific release rather than the latest commit, use git checkout v0.9.8 after cloning to pin a tested version before running the installer.

Our Download section links directly to the official GitHub repository.

xpadneo supports Xbox One S, Xbox Series X|S, and Xbox Elite Series 2 wireless controllers over Bluetooth. It also works with several third-party controllers that use the Xbox wireless protocol.

The driver was originally built for the Xbox One S controller, which was the first Xbox controller with Bluetooth support. Full compatibility has since expanded to the Xbox Series X|S controller (including the Share button, mapped to F12) and the Elite Series 2 (with working paddle buttons and hardware profile switching). Third-party support covers 8BitDo controllers with a Nintendo layout quirk mode, GuliKit KingKong family controllers including the KK3 MAX, and GameSir T4 Cyclone and T4 Nova Lite.

• Xbox One S: Original target, full Bluetooth classic support
• Xbox Series X|S: Full support via BLE, Share button works
• Xbox Elite Series 2: Paddles, profile switching, trigger rumble
• 8BitDo: Nintendo layout quirk mode for correct button mapping
• GuliKit KingKong: KK3 MAX and related models
• GameSir T4: Cyclone and Nova Lite variants

Pro tip: Xbox 360 controllers are not supported by xpadneo since they use a proprietary wireless protocol, not Bluetooth. For 360 controllers, use the built-in xpad kernel driver with a USB cable or wireless receiver.

See the full Features section for a breakdown of what each controller model supports.

xpadneo requires any Linux distribution running kernel 4.18 or newer, DKMS, kernel headers for your running kernel, and a Bluetooth adapter.

The driver has been tested on Arch Linux, Ubuntu, Debian, Fedora, Manjaro, openSUSE, and Linux Mint. You need the dkms package, matching linux-headers for your kernel version (check with uname -r), and BlueZ for Bluetooth management. The kernel must have the UHID module available, which you can verify by running zgrep UHID /proc/config.gz. The driver itself is about 50 KB and has minimal CPU and memory impact once loaded.

• Kernel: 4.18 or later (5.x and 6.x fully supported)
• Packages: dkms, linux-headers-$(uname -r), bluez
• Bluetooth: Built-in or USB Bluetooth adapter (CSR or Actions Semiconductor chipsets work best)
• Disk space: Under 1 MB total

Pro tip: Avoid Realtek RTL8761BU Bluetooth dongles with xpadneo. Community reports on Reddit and GitHub issues consistently show frequent disconnects with that chipset. Intel AX200 adapters or CSR-based USB dongles perform much better.

Check the full specs on our System Requirements page.

No, xpadneo is a Linux-only kernel module. It does not work on Windows or macOS, and there are no plans to port it to those platforms.

xpadneo is a DKMS kernel driver that hooks into the Linux HID subsystem. Windows already has native Xbox controller support built into the OS through Microsoft’s own drivers, so a tool like xpadneo would be redundant there. macOS has limited Xbox controller support through the system’s Game Controller framework, and the kernel architecture is completely different from Linux. If you dual-boot Linux and Windows, xpadneo only applies to your Linux sessions. The controller will use Microsoft’s native drivers when you boot into Windows.

• Windows: Use Microsoft’s built-in Xbox controller driver or the Xbox Accessories app
• macOS: Pair via System Settings > Bluetooth; basic support since macOS Ventura
• Linux: xpadneo is the recommended driver for Bluetooth Xbox controller support

Pro tip: If you use Steam on Linux, Steam Input can also handle Xbox controller mapping without xpadneo. However, xpadneo gives you system-wide support outside of Steam, including trigger rumble that Steam Input does not provide.

Learn more about xpadneo’s Linux-specific features in the Features section.

Yes, xpadneo is 100% free and open source. There is no paid version, no premium tier, and no feature gating behind a paywall.

The project is licensed under GPL-3.0, which means anyone can use, modify, and redistribute it freely. All features are included in the single open-source release: rumble, trigger force feedback, battery reporting, button remapping, paddle support for Elite controllers, and high-precision mode. The developers accept contributions through GitHub pull requests but do not charge for the software or offer paid support tiers. The project has been free since its creation in 2018 and the GPL-3.0 license legally prevents anyone from creating a proprietary fork.

• Full feature set included in every release at no cost
• GPL-3.0 license guarantees it stays free and open
• No ads, no bundled software, no registration required
• Community support available through GitHub Issues and Linux gaming forums

Pro tip: If you find xpadneo useful, consider starring the GitHub repository or filing detailed bug reports when you hit issues. That is the best way to support the project and help the maintainers prioritize fixes.

Download xpadneo at no cost from our Download section.

xpadneo uses the GNU General Public License v3.0 (GPL-3.0), one of the most widely used open-source licenses in the Linux kernel ecosystem.

GPL-3.0 grants you the right to use, study, share, and modify the software. If you distribute a modified version, you must also release your changes under the same license and make the source code available. This copyleft mechanism ensures that xpadneo and any derivatives remain free software. The license is compatible with the Linux kernel’s GPL-2.0 licensing since xpadneo operates as a loadable kernel module through DKMS rather than being compiled directly into the kernel tree. Companies and individuals can use xpadneo in commercial Linux deployments without paying licensing fees.

• Free for personal, educational, and commercial use
• Modifications must be shared under the same GPL-3.0 terms
• No patent restrictions or usage limitations

Pro tip: If you package xpadneo for internal distribution at your organization, keep the LICENSE file intact and provide access to the source code to stay compliant with GPL-3.0 terms.

Read more about xpadneo’s development background in the Overview section.

Install xpadneo on Ubuntu or Debian by cloning the GitHub repository and running the included install script. The whole process takes about two minutes.

Before installing, you need DKMS and your kernel headers. On Ubuntu 22.04 or later, and Debian 11 or later, these are available in the default repositories. The install script handles DKMS registration, module compilation, and loading automatically. After installation, the module persists across reboots because DKMS rebuilds it whenever you update your kernel.

1. Install prerequisites: sudo apt update && sudo apt install dkms linux-headers-$(uname -r) git
2. Clone the repository: git clone https://github.com/atar-axis/xpadneo.git
3. Enter the directory: cd xpadneo
4. Run the installer: sudo ./install.sh
5. Verify the module is loaded: lsmod | grep xpadneo
6. Pair your controller via bluetoothctl: scan on, find your controller MAC, pair, trust, and connect

Pro tip: If DKMS fails with a headers mismatch error, run sudo apt install linux-headers-$(uname -r) again after a recent kernel update. Sometimes the headers package lags behind the kernel package by a day or two in the repositories.

For a detailed walkthrough with screenshots, see our Getting Started guide.

On Arch Linux and Manjaro, install xpadneo through the AUR package xpadneo-dkms using an AUR helper like yay or paru.

The AUR package handles all dependencies automatically, including DKMS and kernel headers. It tracks the official GitHub releases, so you get updates through your normal system upgrade process with yay -Syu. Manjaro users can also find it in the community repositories depending on the branch. The AUR package has been maintained since 2019 and receives regular updates within days of new upstream releases.

1. Install with yay: yay -S xpadneo-dkms
2. Or install with paru: paru -S xpadneo-dkms
3. Load the module: sudo modprobe hid_xpadneo
4. Verify: dmesg | grep xpadneo
5. Pair controller: bluetoothctl then scan, pair, trust, connect

Pro tip: On Manjaro, if you use a non-default kernel (like linux-lts or linux-zen), make sure you have the matching headers package installed. Run pacman -Q | grep linux-headers to check. DKMS needs headers for every kernel you have installed.

Check the System Requirements to confirm your setup is compatible.

Pair your Xbox controller with xpadneo using bluetoothctl, the standard Linux Bluetooth command-line tool. The controller should rumble briefly when xpadneo binds to it.

Before pairing, make sure the Bluetooth service is running (sudo systemctl start bluetooth) and that xpadneo is loaded (lsmod | grep xpadneo). Put your Xbox controller into pairing mode by pressing and holding the Connect button on top of the controller until the Xbox logo flashes rapidly. For Xbox Series X|S controllers, you may need to update the controller firmware via the Xbox Accessories app on Windows first, as older firmware versions have known BLE pairing bugs.

1. Open a terminal and run bluetoothctl
2. Type scan on and wait for your controller to appear (look for “Xbox Wireless Controller”)
3. Note the MAC address (format: C8:3F:26:XX:XX:XX)
4. Type scan off
5. Type pair C8:3F:26:XX:XX:XX (use your actual MAC)
6. Type trust C8:3F:26:XX:XX:XX
7. Type connect C8:3F:26:XX:XX:XX

Pro tip: If the controller connects but immediately disconnects, edit /etc/bluetooth/input.conf and add UserspaceHID=true under the [General] section, then restart the Bluetooth service. This forces BlueZ to hand off HID processing to xpadneo instead of the default kernel handler.

See the full pairing walkthrough in our Getting Started guide.

Frequent disconnections are usually caused by Bluetooth adapter incompatibilities, outdated controller firmware, or incorrect BlueZ configuration settings.

The Xbox Series X|S controller uses Bluetooth Low Energy (BLE), which is more sensitive to adapter chipsets than classic Bluetooth. Realtek RTL8761BU dongles are a known problem, causing reconnect loops every few seconds. Intel AX200/AX210 wireless cards work well but may need connection interval tuning. The controller’s own firmware also matters: Microsoft ships periodic firmware updates through the Xbox Accessories app on Windows that fix BLE stability bugs. If you have not updated your controller firmware recently, that is often the root cause.

1. Check your Bluetooth adapter chipset: lsusb | grep -i bluetooth
2. Update controller firmware via Windows or Xbox console if possible
3. Edit /etc/bluetooth/main.conf and add under [LE]:
   MinConnectionInterval=7
MaxConnectionInterval=9
ConnectionLatency=0
4. Restart Bluetooth: sudo systemctl restart bluetooth
5. Remove and re-pair the controller: bluetoothctl remove [MAC] then pair again

Pro tip: If you keep having disconnects with an internal Bluetooth chip, try a USB Bluetooth 5.0 dongle with a CSR or Actions Semiconductor chipset. They cost under $10 and solve most BLE stability problems. Disable the internal adapter first to avoid conflicts.

For more troubleshooting steps, check the official docs linked from our Features section.

Button mapping problems with xpadneo are typically caused by SDL2 conflicts or the default xpad kernel driver intercepting the controller before xpadneo can bind to it.

When buttons are swapped or triggers do not register correctly, the first thing to check is whether xpadneo is actually handling the controller. Run dmesg | grep xpadneo to see if the driver bound to your device. If not, the built-in xpad module may have grabbed it first. SDL2 versions before 2.28 also have a known issue where the HIDAPI backend conflicts with xpadneo’s event handling, causing RB/LB swaps and unresponsive triggers. This is especially common on Arch and Manjaro.

1. Verify xpadneo is active: dmesg | grep xpadneo
2. If xpad grabbed the device first, blacklist it: echo "blacklist xpad" | sudo tee /etc/modprobe.d/xpad-blacklist.conf
3. Set the SDL2 environment variable: export SDL_JOYSTICK_HIDAPI=0
4. Update SDL2 to version 2.28 or later for automatic xpadneo detection

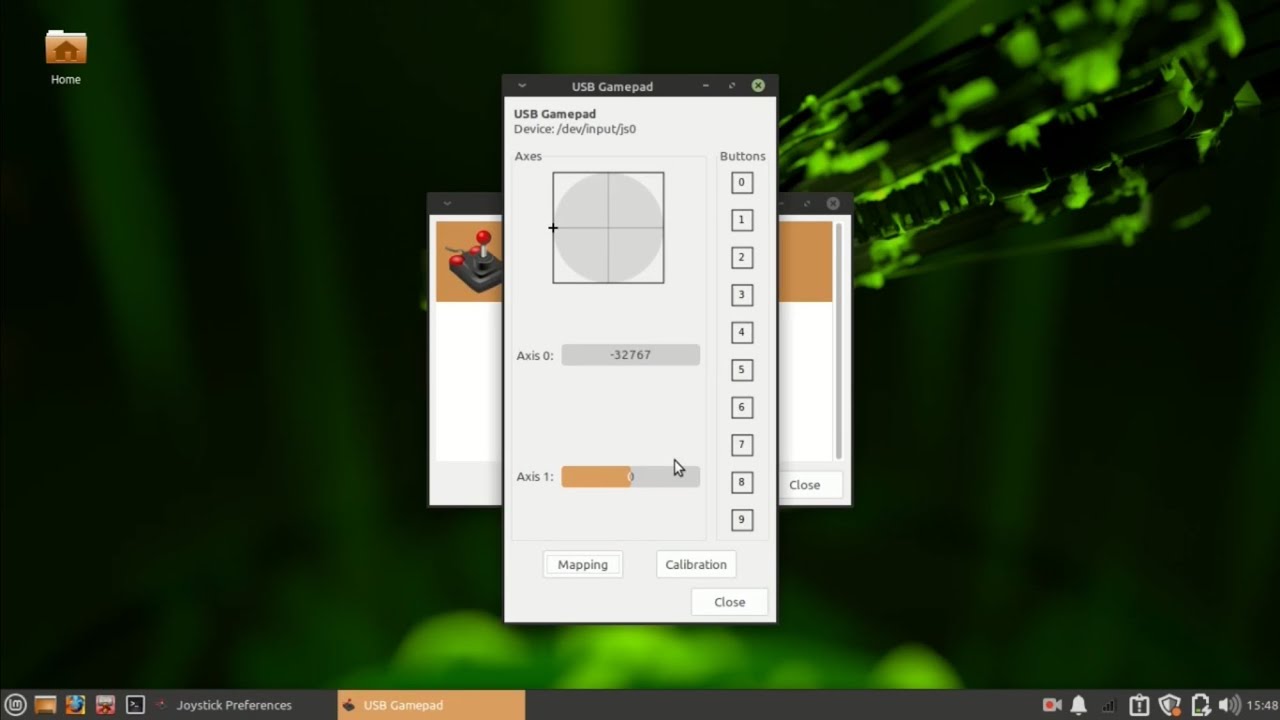

5. Calibrate with jscal if using joydev API tools like jstest

Pro tip: Add export SDL_JOYSTICK_HIDAPI=0 to your ~/.bashrc or ~/.profile so it persists across sessions. This prevents SDL2 from using its own HID handler and lets xpadneo manage the controller mapping directly.

Review the full list of supported controllers and their button layouts in our Features section.

If xpadneo stops working after a kernel update, DKMS failed to rebuild the module for your new kernel. This usually means the new kernel headers are not installed yet.

DKMS (Dynamic Kernel Module Support) is supposed to automatically recompile xpadneo whenever you install a new kernel. When this fails, the module simply does not load on boot, and your controller falls back to the basic xpad driver or does not connect at all. On Ubuntu and Debian, the headers package sometimes arrives in the repositories a few hours after the kernel package, so an immediate reboot after a kernel update can trigger this problem.

1. Install headers for your current kernel: sudo apt install linux-headers-$(uname -r) (Debian/Ubuntu) or sudo pacman -S linux-headers (Arch)
2. Check DKMS status: sudo dkms status
3. If xpadneo shows as “broken” or missing, rebuild it: cd xpadneo && sudo ./install.sh
4. Load the module: sudo modprobe hid_xpadneo
5. Verify: lsmod | grep xpadneo

Pro tip: On Arch Linux, install dkms with the linux-headers meta-package so headers always update in sync with the kernel. Run sudo dkms autoinstall after any kernel update to force DKMS to rebuild all registered modules immediately.

See our Getting Started guide for the full installation walkthrough.

Update xpadneo by pulling the latest changes from the GitHub repository and re-running the install script. AUR users can update through their package manager.

The latest version is v0.9.8 “LAST XMAS,” released on December 30, 2024. If you installed from the git repository, navigate to your xpadneo directory and pull the latest code. The install script handles unregistering the old DKMS module and registering the new one. If you installed via the AUR on Arch or Manjaro, a simple yay -Syu will update it alongside your other packages.

1. For git installs: cd xpadneo && git pull
2. Uninstall old version: sudo ./uninstall.sh
3. Install new version: sudo ./install.sh
4. Reload the module: sudo modprobe -r hid_xpadneo && sudo modprobe hid_xpadneo
5. For AUR installs: yay -Syu xpadneo-dkms

Pro tip: Check the GitHub releases page before updating to read the changelog. Some updates change default rumble behavior or add new configuration parameters. Knowing what changed helps you adjust your /etc/modprobe.d/ settings if needed.

Download the latest release from our Download section.

xpadneo v0.9.8 “LAST XMAS,” released December 30, 2024, includes fixes for newer kernel compatibility and expanded third-party controller support.

This release maintains compatibility with Linux kernels up to 6.x, includes improved BLE connection handling for Xbox Series X|S controllers, and adds support for additional third-party controllers from GuliKit and GameSir. The release also includes general stability improvements for the rumble feedback system and better handling of edge cases during Bluetooth reconnection. The version name follows the project’s tradition of themed release names.

• Kernel compatibility updates for 6.x series kernels
• Expanded third-party controller support (GuliKit KingKong family, GameSir T4 variants)
• BLE connection stability improvements for Series X|S controllers
• Rumble subsystem refinements
• Bug fixes for edge cases in Bluetooth reconnection

Pro tip: If you are running an older version (v0.8.x or earlier), the upgrade to v0.9.8 is strongly recommended. The BLE improvements alone resolve most of the disconnection issues that plagued earlier releases with Series X|S controllers.

See the complete feature list in our Features section.

Use xpadneo for Bluetooth connections, xone for the Microsoft wireless USB dongle, and xpad only as a basic fallback for wired USB connections.

These three drivers serve different connectivity methods. xpad is the built-in Linux kernel driver that handles basic USB connectivity for Xbox, Xbox 360, and some Xbox One controllers, but it lacks rumble on newer controllers and has no Bluetooth support. xpadneo focuses exclusively on Bluetooth and adds trigger force feedback, battery reporting, and correct button mapping that xpad cannot provide. xone targets the Microsoft Xbox Wireless Adapter (USB dongle) and adds headset audio support, which neither xpad nor xpadneo offer. The xone project is maintained by the dlundqvist fork after the original medusalix repository became less active.

• xpadneo: Best for Bluetooth wireless. Trigger rumble, battery reporting, 2,600+ GitHub stars, actively maintained
• xone: Best for USB dongle. Headset/audio support, multi-controller via dongle. Maintained by dlundqvist fork
• xpad: Built into the kernel, basic USB support only. No advanced features, no separate installation needed
• Steam Input: Handles controller mapping inside Steam games without kernel drivers, but no system-wide support

Pro tip: You can run xpadneo and xone side by side. Use xpadneo for Bluetooth and xone for the dongle. Just blacklist the default xpad module to prevent conflicts: echo "blacklist xpad" | sudo tee /etc/modprobe.d/xpad-blacklist.conf.

Learn more about what makes xpadneo unique in our Features section.

xpadneo lets you adjust rumble intensity from 0 to 100 through kernel module parameters. Trigger force feedback is a unique feature that provides pressure-dependent vibration intensity in each trigger.

The rumble system uses the Linux ff-memless force feedback interface. By default, rumble runs at full intensity. You can attenuate it using the rumble_attenuation module parameter, where 0 is full power and 100 disables rumble entirely. Trigger force feedback is separate from the main motor rumble and provides individual vibration in the left and right triggers based on how far you press them. This feature is actually not available on Windows, making xpadneo the only way to experience it.

1. Set rumble attenuation: echo 25 | sudo tee /sys/module/hid_xpadneo/parameters/rumble_attenuation
2. Disable rumble entirely: echo 100 | sudo tee /sys/module/hid_xpadneo/parameters/rumble_attenuation
3. Make it persistent by creating /etc/modprobe.d/xpadneo.conf with: options hid_xpadneo rumble_attenuation=25
4. Trigger force feedback works automatically in games that support it through the Linux ff interface

Pro tip: For gaming on a desk where strong rumble can be distracting, set attenuation to 40-50. You still feel feedback in-game without the controller vibrating off your mousepad. For racing games, keep it at 0 to get full trigger rumble on braking and acceleration.

Explore all configurable parameters in our Features section.

Yes, xpadneo includes a mouse and keyboard emulation mode designed for couch usage, activated by pressing Guide + Select on your controller.

This “couch mode” lets you control your Linux desktop cursor and type basic inputs without reaching for a physical mouse and keyboard. The left stick moves the mouse cursor, triggers act as left/right mouse buttons, and the D-pad maps to arrow keys. This is useful for navigating desktop environments, selecting games in a launcher, or controlling media playback from across the room. The feature is built into the xpadneo driver and does not require any additional software.

• Activate: Press and hold Guide + Select simultaneously
• Left stick: Mouse cursor movement
• Triggers: Left/right mouse click
• D-pad: Arrow key navigation
• Deactivate: Press Guide + Select again

Pro tip: Mouse emulation mode combined with a media player like Kodi or a game launcher like Lutris makes for a solid living room setup. You can boot into your Linux box, navigate entirely with the controller, launch a game, and then xpadneo automatically switches back to gamepad mode.

See the full feature breakdown in our Features section.

Uninstall xpadneo by running the included uninstall script from the cloned repository directory. This removes the DKMS module and all associated files.

The uninstall script reverses everything the install script did: it removes the DKMS registration, deletes the compiled module, and unloads hid_xpadneo from the kernel. After uninstalling, your controller will fall back to the built-in xpad driver for USB connections, or it may not connect over Bluetooth at all without xpadneo. If you installed through the AUR on Arch, remove it through your package manager instead.

1. Navigate to your xpadneo directory: cd xpadneo
2. Run the uninstall script: sudo ./uninstall.sh
3. Remove custom config files if any: sudo rm /etc/modprobe.d/xpadneo.conf
4. For AUR installs: yay -R xpadneo-dkms
5. Optionally remove the xpad blacklist if you created one: sudo rm /etc/modprobe.d/xpad-blacklist.conf
6. Reboot to ensure the module is fully unloaded

Pro tip: Before uninstalling, check if recent kernels have improved built-in Xbox controller support for your specific controller model. Kernel 6.5 and later include better HID handling for Xbox Series controllers, and some users no longer need xpadneo for basic Bluetooth functionality.

If you want to reinstall later, follow the steps in our Getting Started guide.
